A lean-to roof is one of my favorite roofing solutions, especially when I need something simple, cost-effective, and functional. A lean-to roof is a simple way to build a shed, carport, or covered patio space.

Its design, with one sloped side leaning against an existing structure or posts, makes it easy to build and perfect for many different uses.

What I love about the lean-to roof is its versatility. It works with a variety of materials, from classic wood and shingles to modern metal or polycarbonate panels.

The one-way slope helps water drain quickly, which is important in places with lots of rain or snow.

In this guide, I’ll show you how to build your own lean-to roof step by step. Let’s get started!

What is a Lean-to Roof?

A lean-to roof is a simple, single-slope roofing structure that leans against another wall or support, making it one of the most straightforward roof designs to build.

Its angled shape helps rain and snow drain fast, which is handy in places with changing weather.

Lean-to roofs are often used for sheds, patios, garden structures, carports, and home extensions because they require fewer materials and less complex framing than other roof styles.

This design is also highly versatile. It can attach to an existing building or stand alone with posts and beams, depending on the project.

Lean-to roofs fit many materials, wood, metal, shingles, or panels, so they match different styles and budgets.

How to Build a Lean-to Roof?

Building a lean-to roof becomes much easier when the process is broken into clear, manageable steps. This step-by-step approach helps ensure the project stays organized and beginner-friendly.

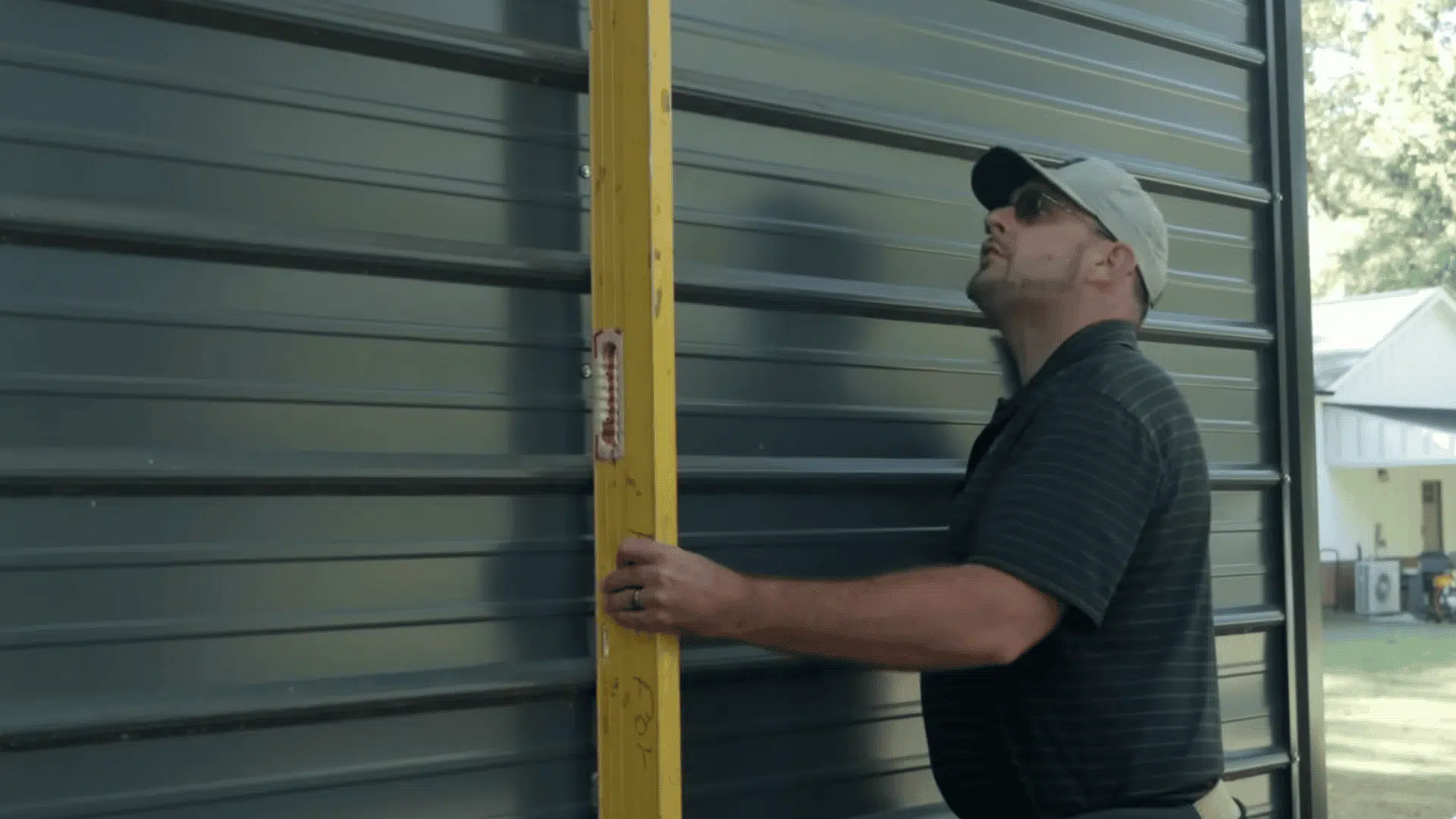

Step 1: Inspect and Prepare the Existing Structure

Before building, make sure the existing structure is level and straight.

This step is important because the lean-to roof needs a solid, even surface to attach to and line up correctly.

If you notice issues like uneven ribs, bowed boards, or crooked corners, mark them early so they can be fixed, or adjust them when installing the ledger board.

Also, decide how far the new roof should extend and check for anything that might get in the way, such as trees or nearby structures.

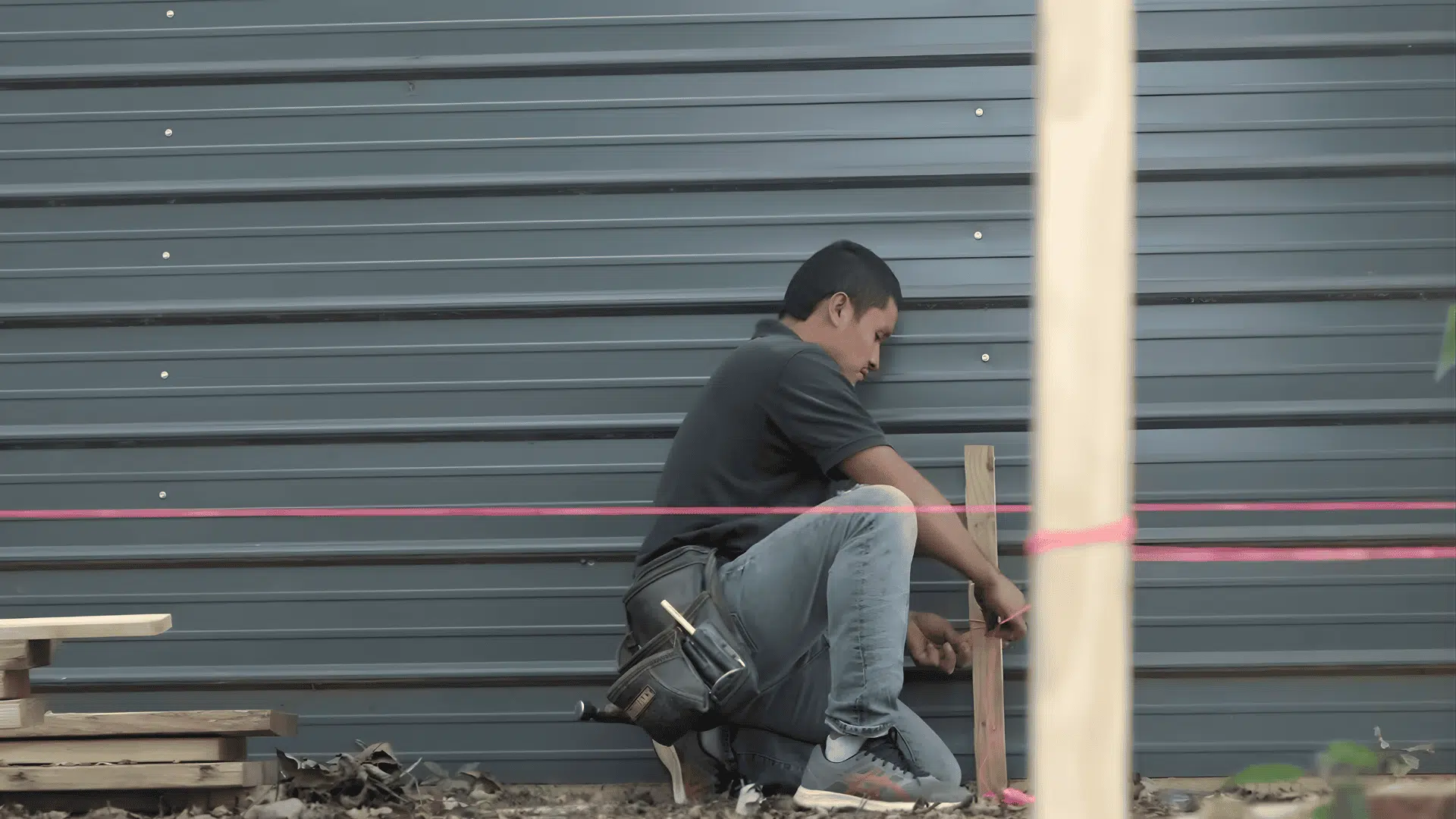

Step 2: Mark the Foundation and Lay out Post Locations

Run string lines from the building to mark the locations of the posts.

This helps ensure the lean-to frame is square and aligned with the existing structure. Position the lines far enough from digging locations to avoid disturbance.

Measure the distance from the building to the outer posts,1 foot in this tutorial, to locate holes accurately.

Cross-check the diagonal measurements to confirm everything is square.

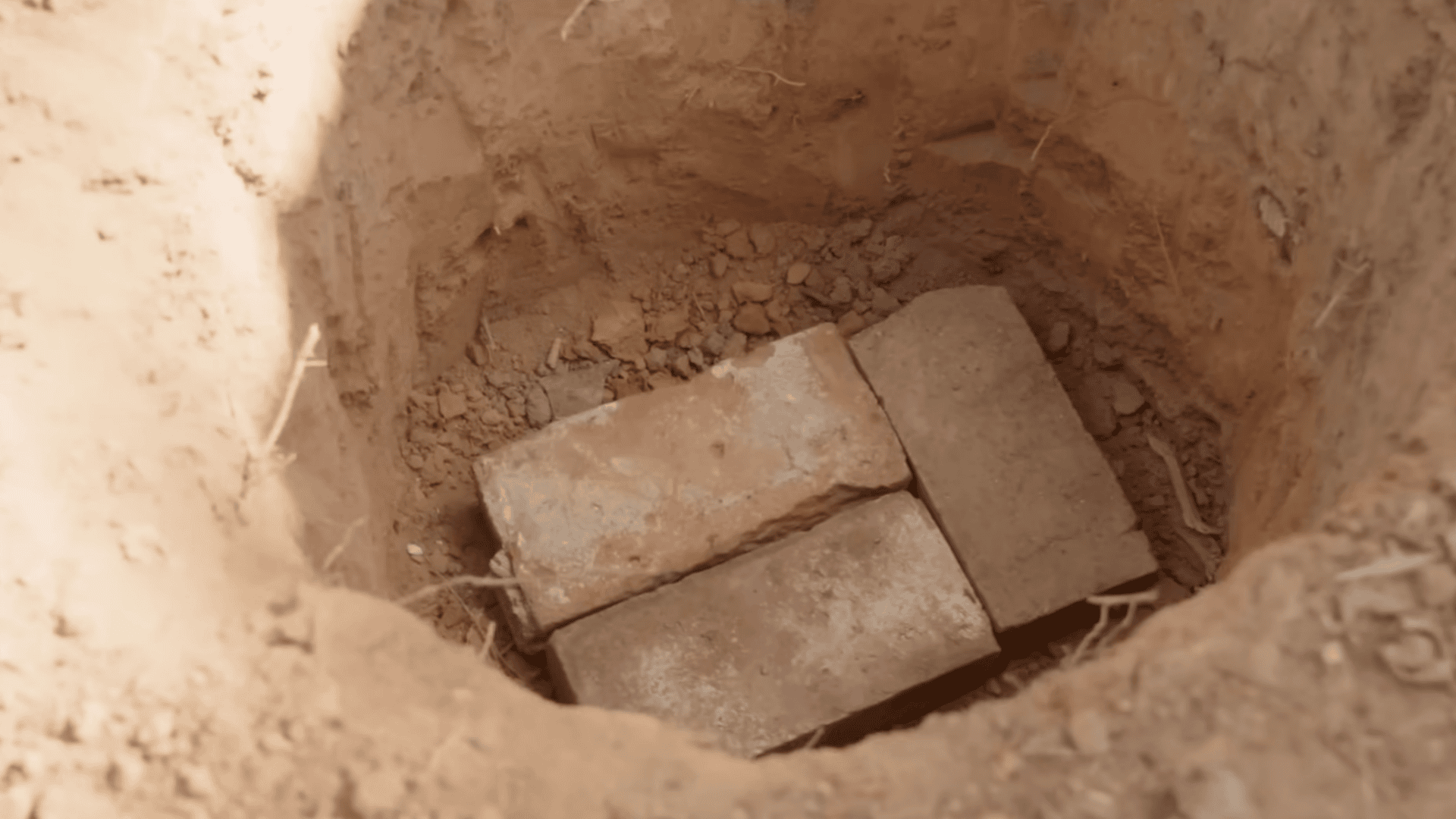

Step 3: Set Posts on Bricks or Blocks and Brace Them

Set bricks or concrete blocks at the bottom of each post hole to lift the posts slightly and allow the concrete to fully surround them.

Place the 6×6 posts into the holes, making sure each one sits close to the string line without moving it.

Install temporary braces in multiple directions to hold the posts plumb. After confirming each post is perfectly vertical, pour concrete into the hole, leaving the top few inches open.

Pack and settle the concrete to remove air pockets. Let the concrete cure overnight before removing the braces.

Step 4: Install the Ledger Board on the Existing Structure

Snap a chalk line three inches below the fascia to set the ledger board height.

Because the ledger supports the rafters, it must be securely attached to a structural stud, not just siding or thin sheathing.

When the ledger board is longer than available lumber, join pieces over a stud for strength.

Secure it thoroughly using exterior-rated screws. This ledger establishes the roof pitch and anchors the top of every rafter, so accuracy in placement is essential.

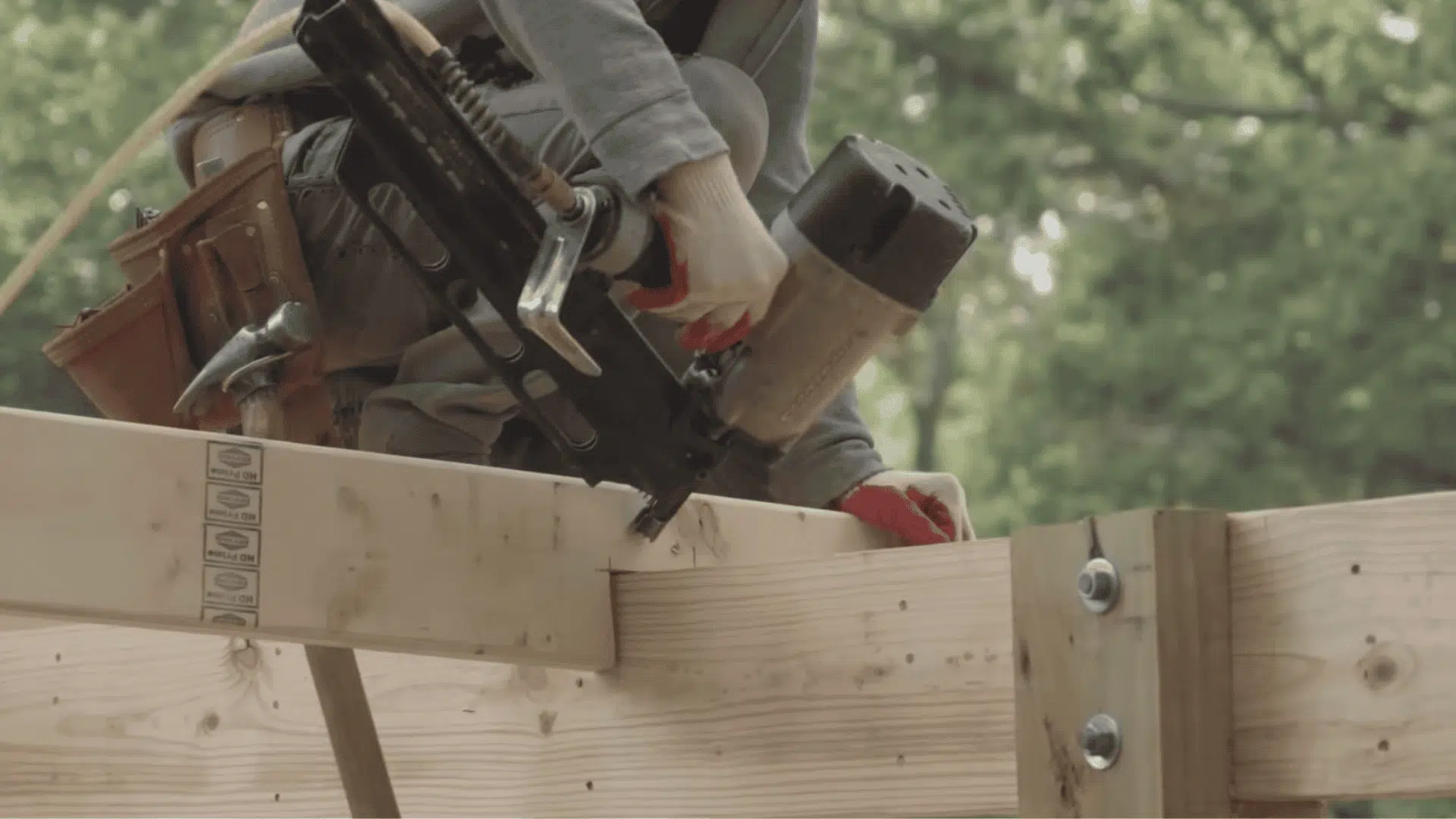

Step 5: Cut and Install the Rafters

Hold a rafter board flush against the ledger and beam to mark the exact angles needed. Mark the bird’s mouth cut where the rafter will sit firmly on the exterior beam.

After tracing both marks, use a circular saw and a reciprocating saw to complete the cuts without overcutting into the wood.

Create a pattern from the first rafter to match the remaining ones. Install each rafter by securing it to the ledger and seating it firmly on the beam.

When installed correctly, the rafters establish the roof’s structure and pitch.

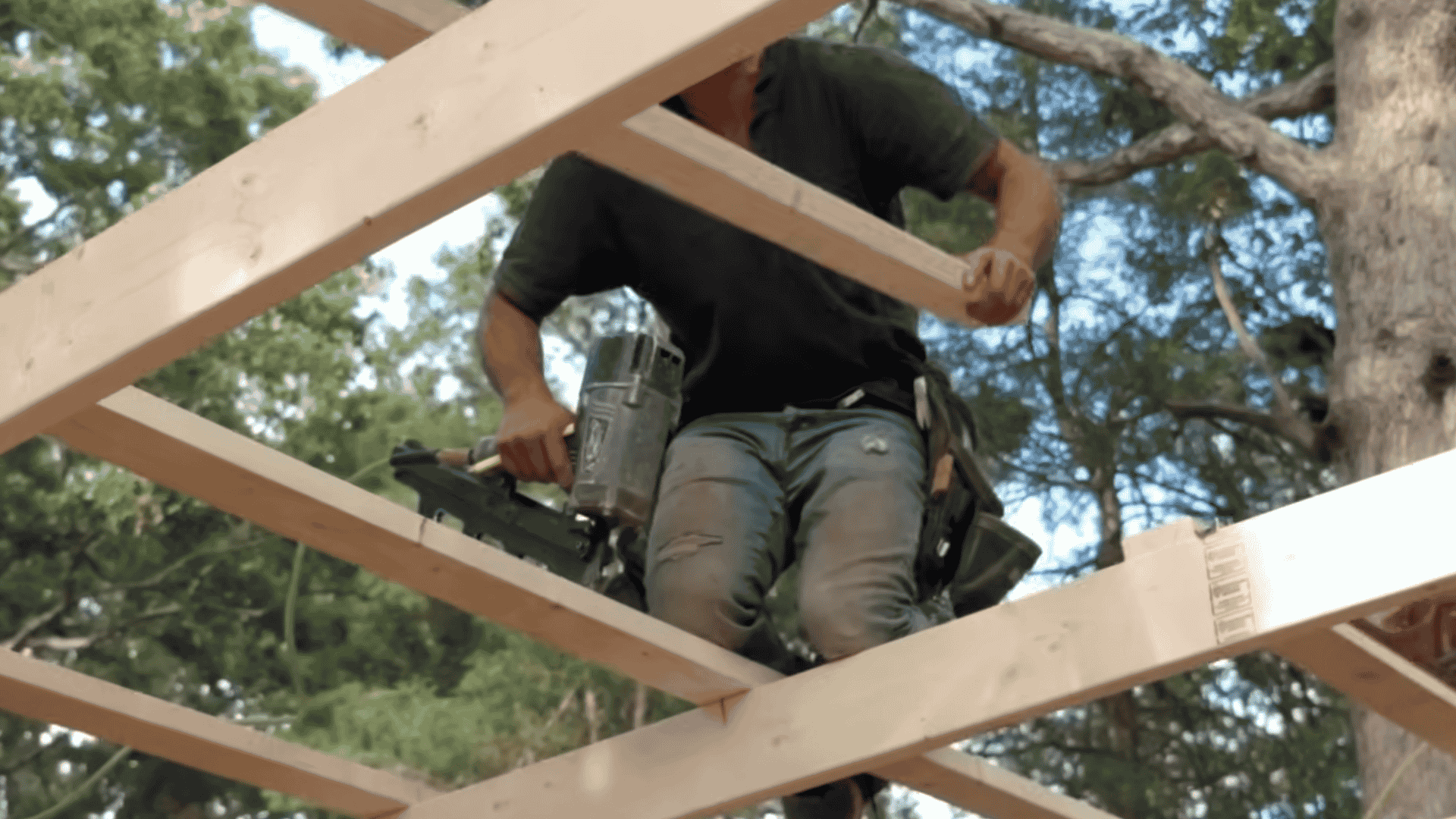

Step 6: Install Purlins (Horizontal Runners)

Attach 2×4 purlins horizontally across the rafters, spacing them 2 feet apart.

Stagger the joints so no weak points form where multiple boards end on the same rafter. These purlins provide continuous support for the roofing material and help evenly distribute weight.

Align each purlin carefully and secure it with nails or screws.

Proper purlin installation extends the durability of the roof and prevents dips or waves in the metal sheeting.

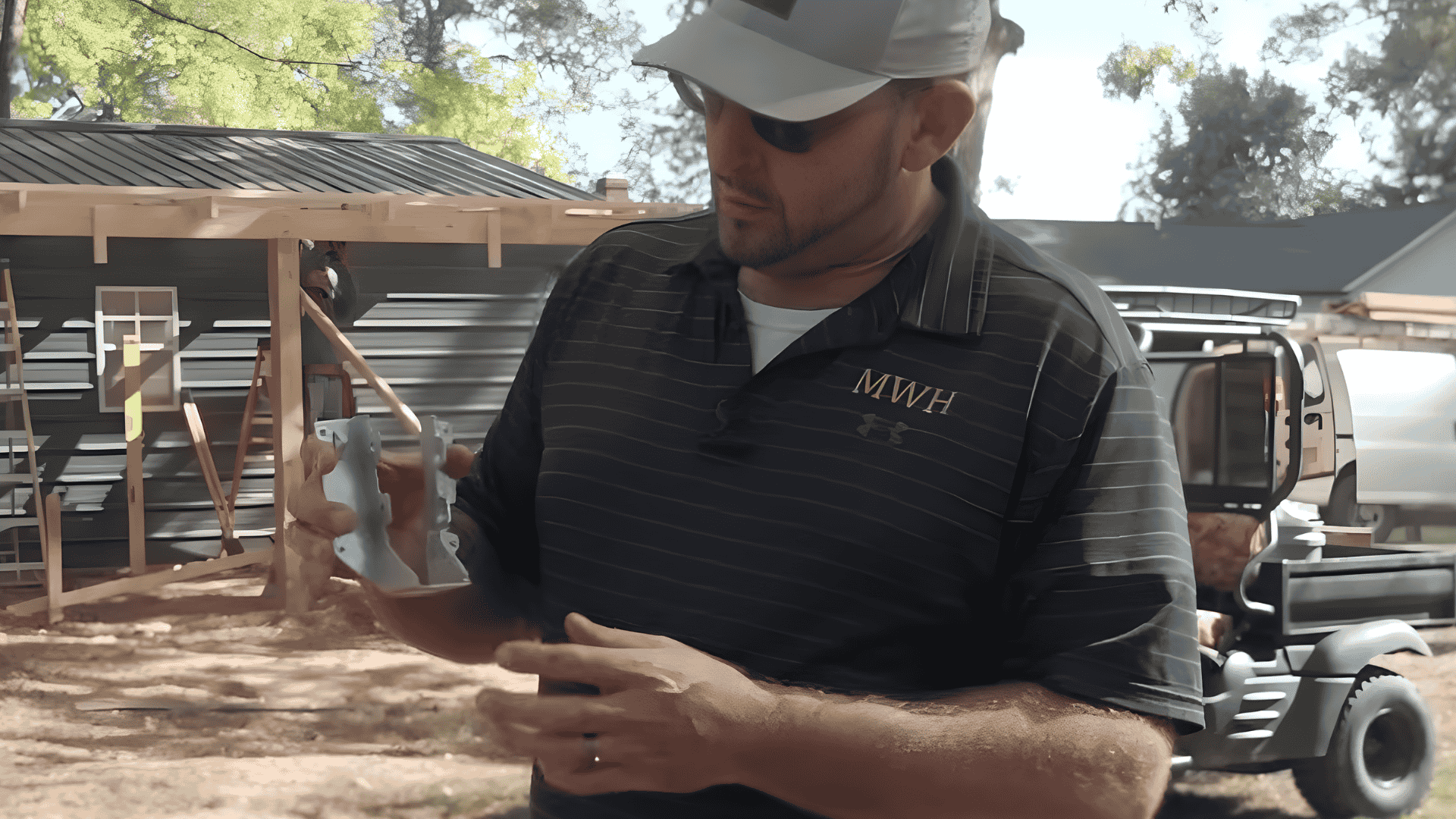

Step 7: Add Rafter Hangers and Hurricane Ties

Install LUS26Z rafter hangers where the rafters meet the ledger board. Fill every nail hole with the proper fasteners to ensure weight is carried safely.

On the outside beam, attach H2.5AZ hurricane ties to secure rafters against uplift during strong winds.

These connectors significantly strengthen the roof and are essential for long-term safety. Using the appropriate nails or screws ensures the entire roof structure is properly anchored.

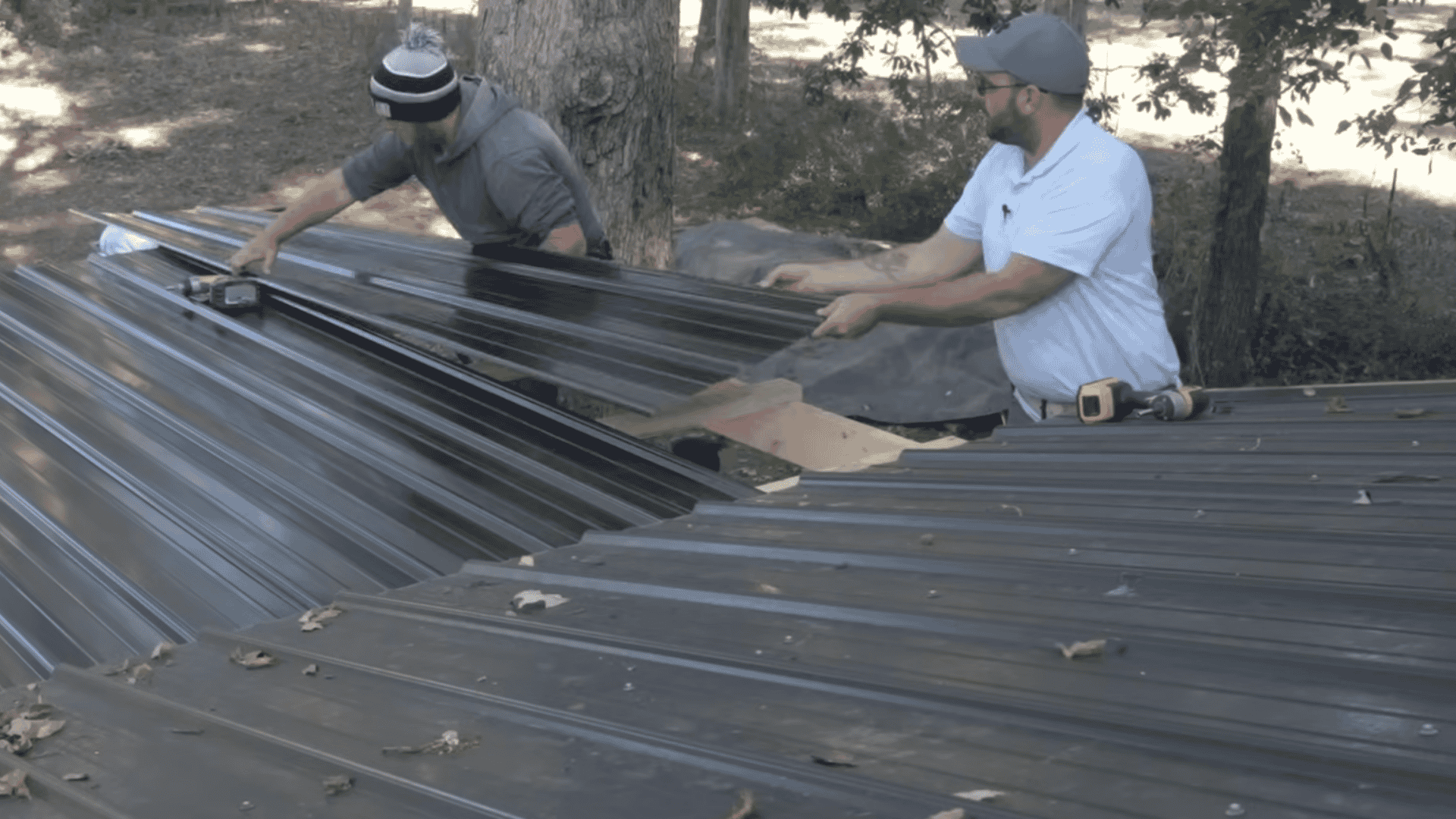

Step 8: Install Roofing Panels and Edge Metals

Begin installing the roofing panels, starting with the apron and rake metal pieces. Ensure the first panel is perfectly aligned, as it determines the alignment for all remaining sheets.

Maintain a consistent reveal, such as a 3-inch overhang, along the roof edge.

Lightly tack the panels first so they can be adjusted before final fastening. Once aligned, snap a chalk line to create straight screw rows.

Overlap each sheet correctly so the lip fits under the previous rib. Fasten all panels securely.

This tutorial is based on a helpful video by First N Foremost. You can check out the original video on their YouTube channel here or watch it below.

Lean-to Roof Maintenance Tips

Maintaining a lean-to roof is essential to ensure its durability and long-term functionality. Regular maintenance can prevent issues such as leaks, water damage, and structural deterioration.

Tips for Maintenance:

• Clean gutters and downspouts regularly to prevent clogs.
• Inspect the roofing material for cracks, holes, or damage.
• Check for any loose or missing fasteners and replace them.
• Trim nearby branches to avoid damage from falling debris.
• Seal any gaps or cracks to prevent leaks.

With these simple steps, your lean-to roof will stay in great shape and continue protecting your space for years to come.

Common Uses for a Lean-to Roof

A lean-to roof is one of the most versatile roofing styles, making it a practical choice for many outdoor and home projects. It’s commonly used for sheds because the simple slope makes them easy to build and maintain.

It also works well for carports, offering quick protection for vehicles without the need for complex framing.

Many homeowners add lean-to roofs to create covered patios, giving them a shaded area for seating, grilling, or storage.

In gardens, this roof style is great for greenhouses, potting areas, or tool shelters because it handles moisture well and allows natural light when paired with clear panels.

It’s also a smart option for home extensions, such as utility rooms or small workshops, since it can attach seamlessly to an existing wall.

Conclusion

Building a lean-to roof is a simple, cost-effective way to add extra covered space, whether for a shed, carport, or patio.

With the right planning, measurements, and materials, I’ve found that a lean-to roof can be easily adapted to fit different styles and climates without complicated construction.

Careful planning, proper installation, and simple upkeep help the roof stay strong and work well over time.

Keeping up with simple maintenance tasks helps prevent bigger issues down the road, and knowing how to handle them gives me peace of mind.

A lean-to roof not only provides shelter and protection but also adds value and functionality to my property.

If you’re ready to begin, start gathering your materials and take the first step today.
