When I started learning how to build a DIY workbench at home, I realized how much easier every project becomes when you have a sturdy place to work.
A good bench keeps your tools in reach, gives you a flat surface to build on, and saves you from working on the floor.
You don’t need special skills to make one, and you can build it even if you’ve never tried a project like this before.
In this guide, I’ll walk you through everything you need to get started, from choosing the right size for your space to picking the tools and materials that make the build easier.
I’ll also show you how to put the frame and top together in clear, simple steps that you can follow without stress.
By the time you reach the end, you’ll know exactly what to do and feel ready to build a workbench that truly fits your home.
How to Pick the Best Size for Your Workbench?
When you pick the best size for your workbench, start by measuring the space in your garage or room so you know how much room you actually have to move around.
Measure the length of the wall, the distance between other items in the area, and the walking space you want to keep open.
After that, think about the height, width, and depth that feel comfortable for you.
Most people like a height that lines up with their wrist when they stand straight, a width between 48 and 72 inches, and a depth of around 24 to 30 inches.
If you plan to use the bench for woodworking, a deeper and wider surface gives you more room to clamp and cut.
For simple home projects, a smaller or narrower bench works fine and keeps the space easy to manage.
Must-Have Tools and Materials for Your Workbench
Before you start cutting or assembling anything, make sure you have all the basics ready.
These tools and materials keep the build simple, safe, and beginner-friendly.
• One sheet of ¾-inch plywood
• Eight 2×4 boards
• Box of 2.5-inch construction screws
• Circular saw, track saw, or jigsaw
• Drill/driver
• Tape measure and square
• Clamps
• Router with roundover bit (optional)
• Safety glasses
Step-By-Step Guide to Building a DIY Workbench
These steps walk you through the build in a simple, clear order. Follow each step at your own pace to create a strong and reliable workbench.

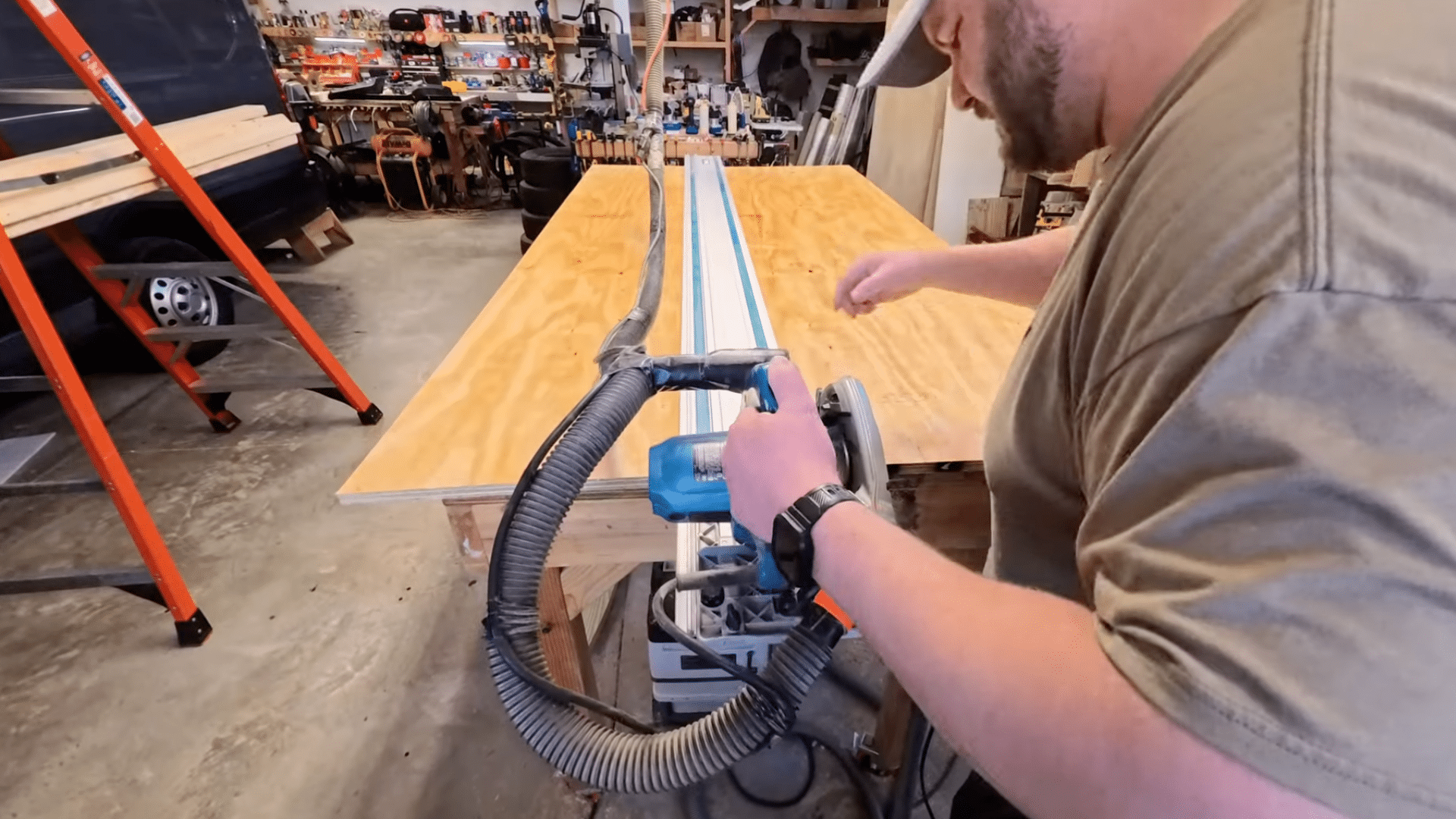

Step 1: Lay out and Cut the Plywood Top
Start by ripping the plywood sheet to 24 inches deep, then cut it to 8 feet long unless you need a shorter top for your space. Mark your layout lines with a pencil and square so the cuts stay straight.
If you don’t have a track saw, a circular saw with a straightedge works well.
The builder preps the top first because the bench is assembled upside down, which helps keep the surface flat, square, and easier to work with.

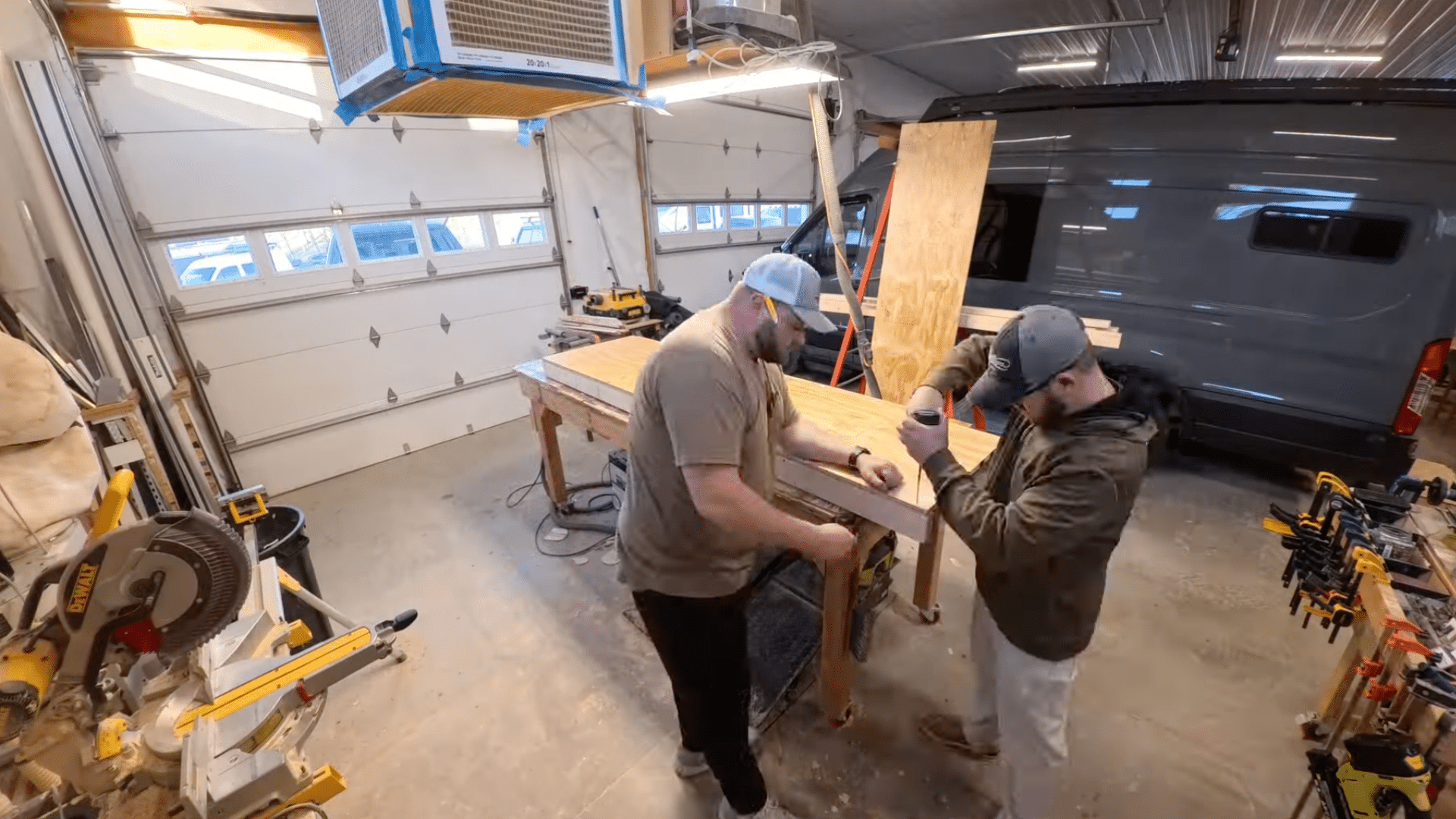

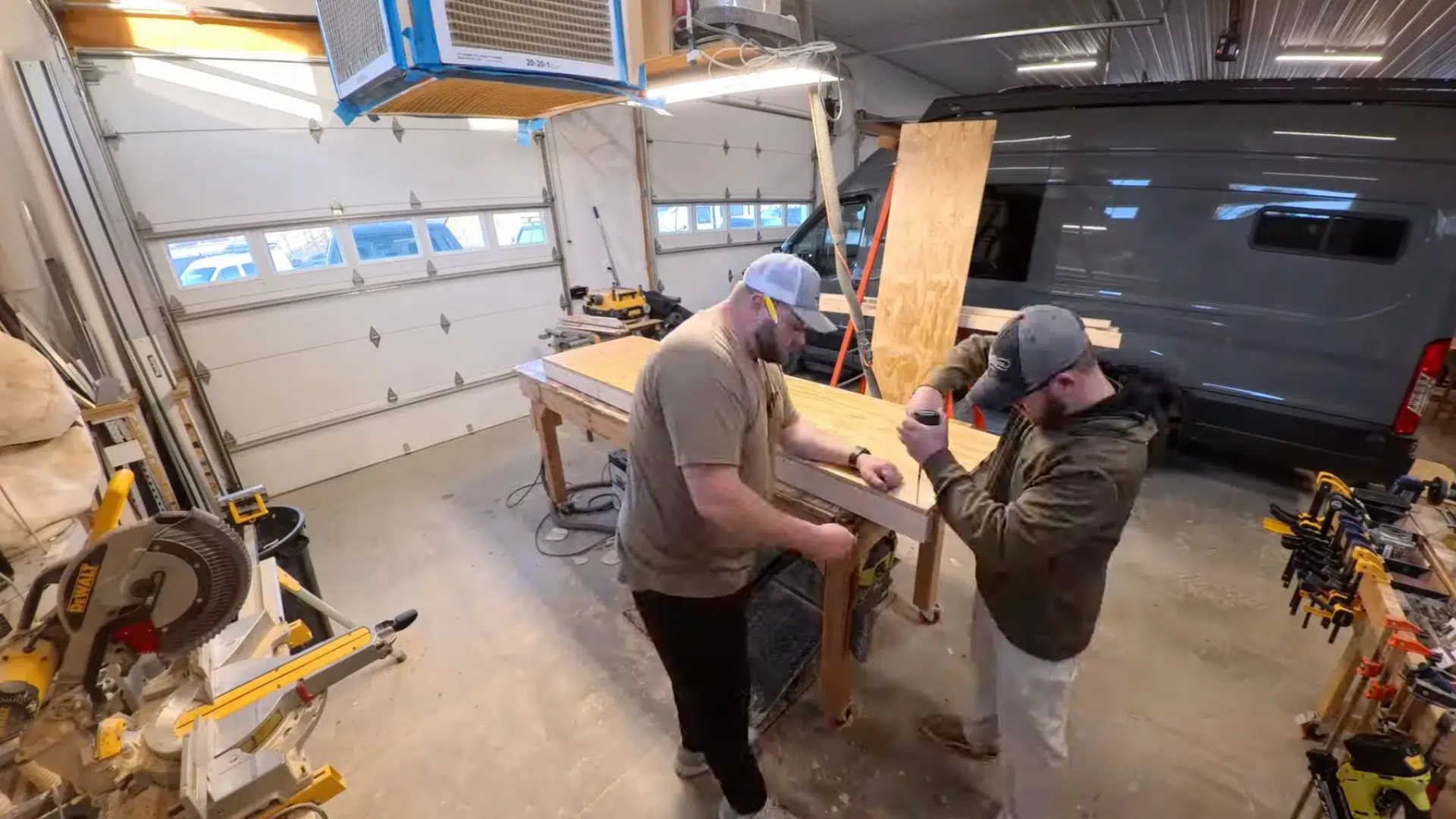

Step 2: Build the Top Frame
Place the plywood upside down and attach 2×4s along every edge to form a strong frame.
Add cross-supports wherever you need more strength. Make sure to pre-drill your holes, use 2.5-inch screws, and check the frame for square with a framing square before tightening everything.
This step creates a solid, stiff top that won’t flex when you start using the bench.
Building the top first also makes the rest of the assembly smoother and helps everything stay aligned.

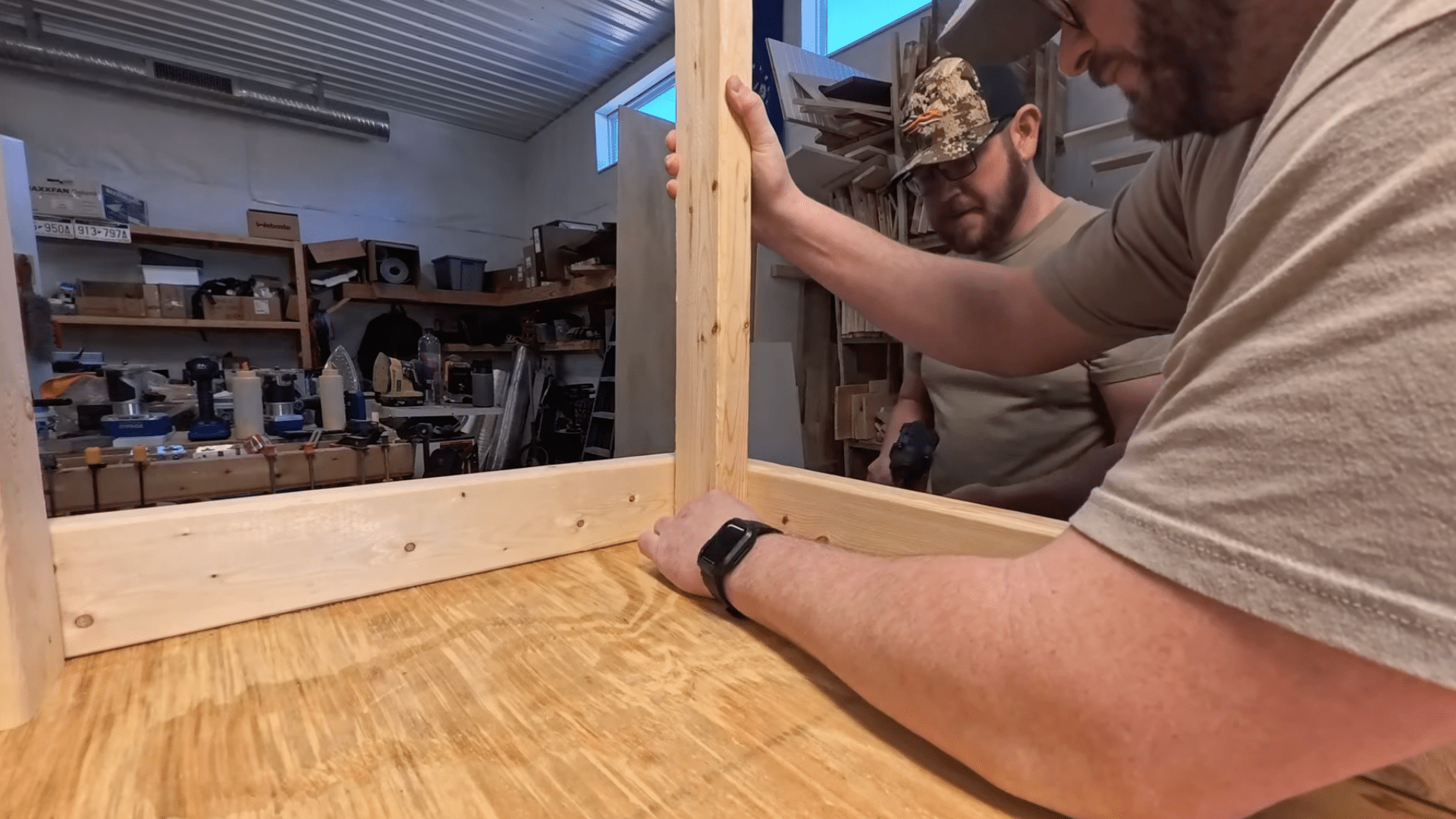

Step 3: Cut and Attach the Legs
Cut four legs at 42 inches each and stand them inside the frame while the top is still upside down.
Screw the legs into the frame from underneath so they stay tight and well aligned. Make sure each leg is plumb before fully fastening it in place.
The builder also adds small 2×4 blocks along the front to bring the edge flush with the top.
These blocks also serve as the starting point for the lower shelf frame you’ll install in the next steps.

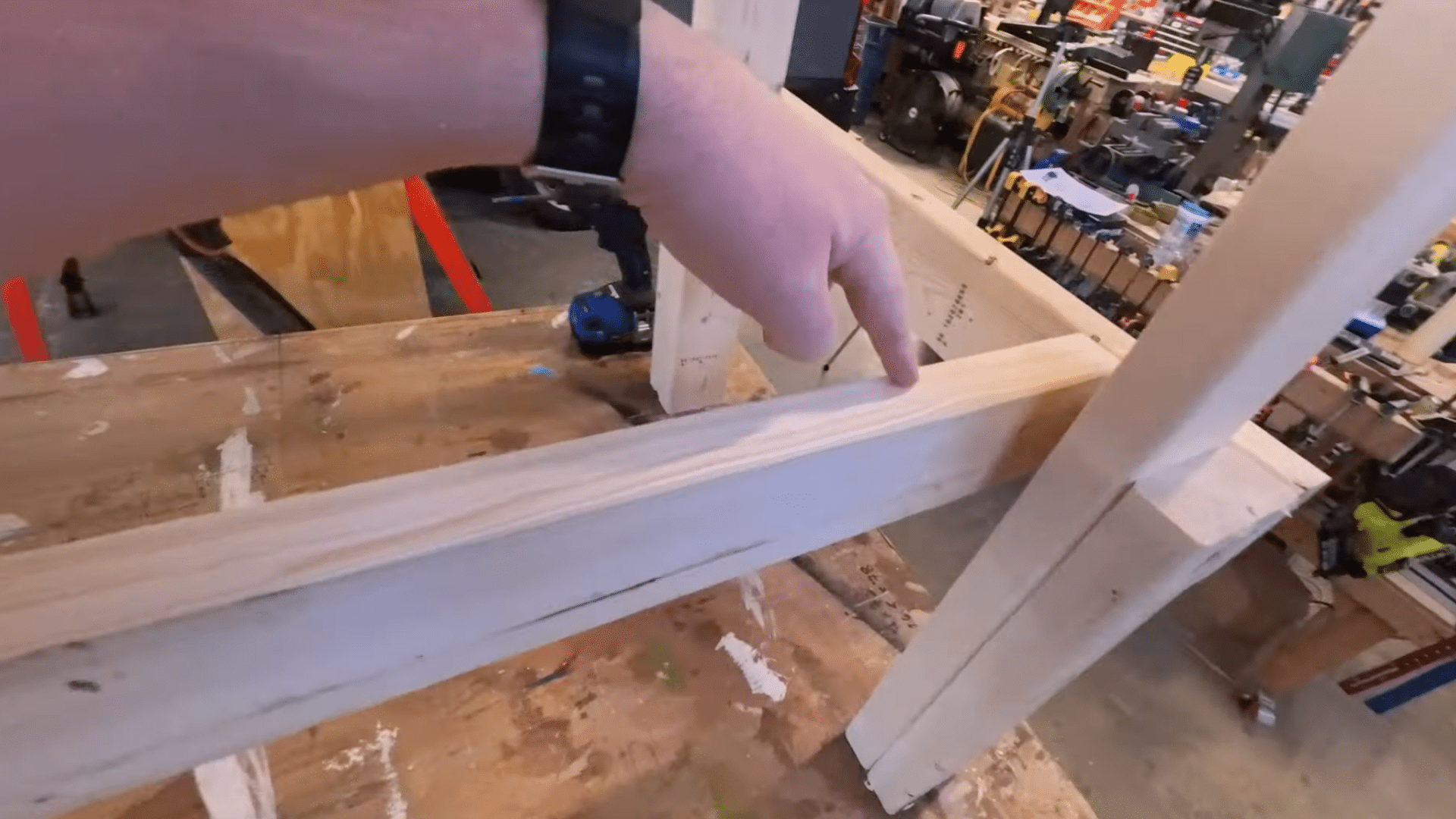

Step 4: Build the Lower Shelf Frame and Toe Kick
Choose your shelf height; 12 inches off the floor is a good starting point, then build a simple frame between the legs at that level.
Add cross-supports so the shelf stays solid and won’t sag over time.
Keep the front section slightly inset to create a comfortable toe kick, giving your shins a little room when you stand at the bench.
This detail might seem small, but it makes long projects easier and keeps the front of the bench from feeling bulky.

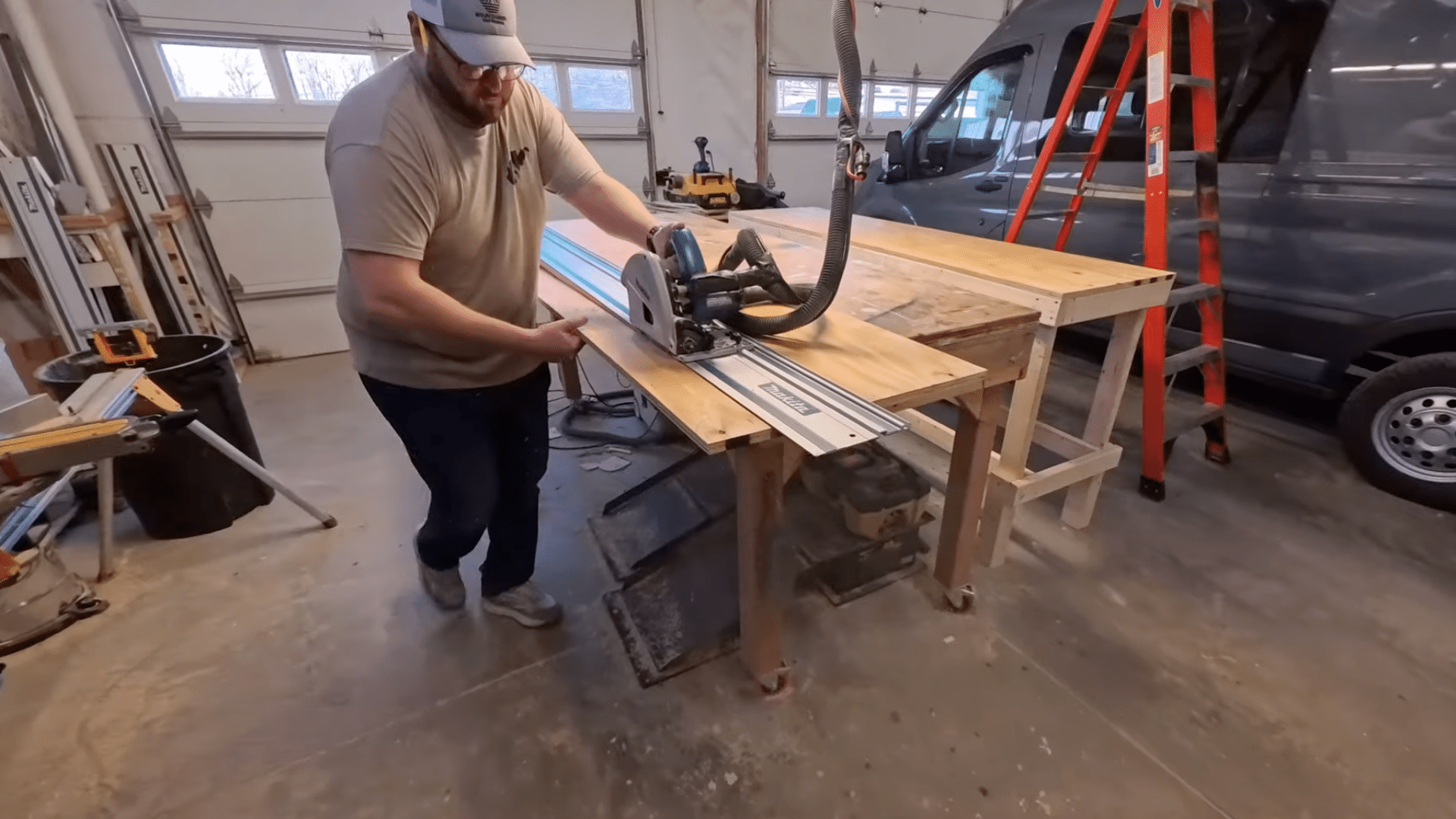

Step 5: Cut and Fit the Shelf and Backsplash
Cut a plywood panel for the lower shelf and notch around the legs so the piece fits cleanly across the frame.
You can often use scrap from the main plywood sheet for this part. Slide it into place and make adjustments as needed.
Add a narrow backsplash strip along the back edge of the bench to stop screws, drill bits, or small tools from rolling off. It’s a simple addition that helps keep your workspace clean and easier to manage.

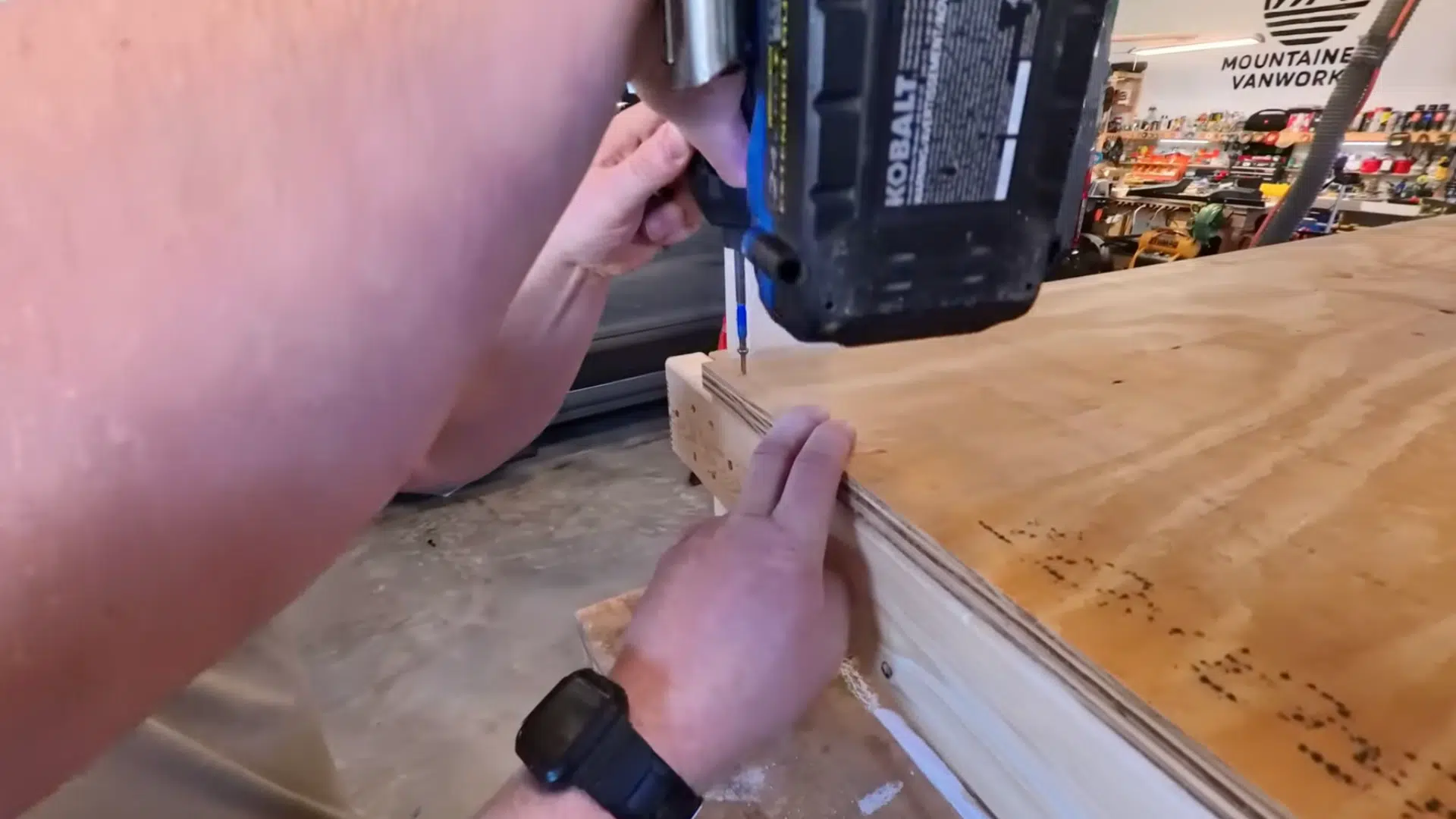

Step 6: Fastening, Squaring, and Finishing Touches
Make the final connections by pre-drilling pilot holes and using multiple screws in each joint for strength.

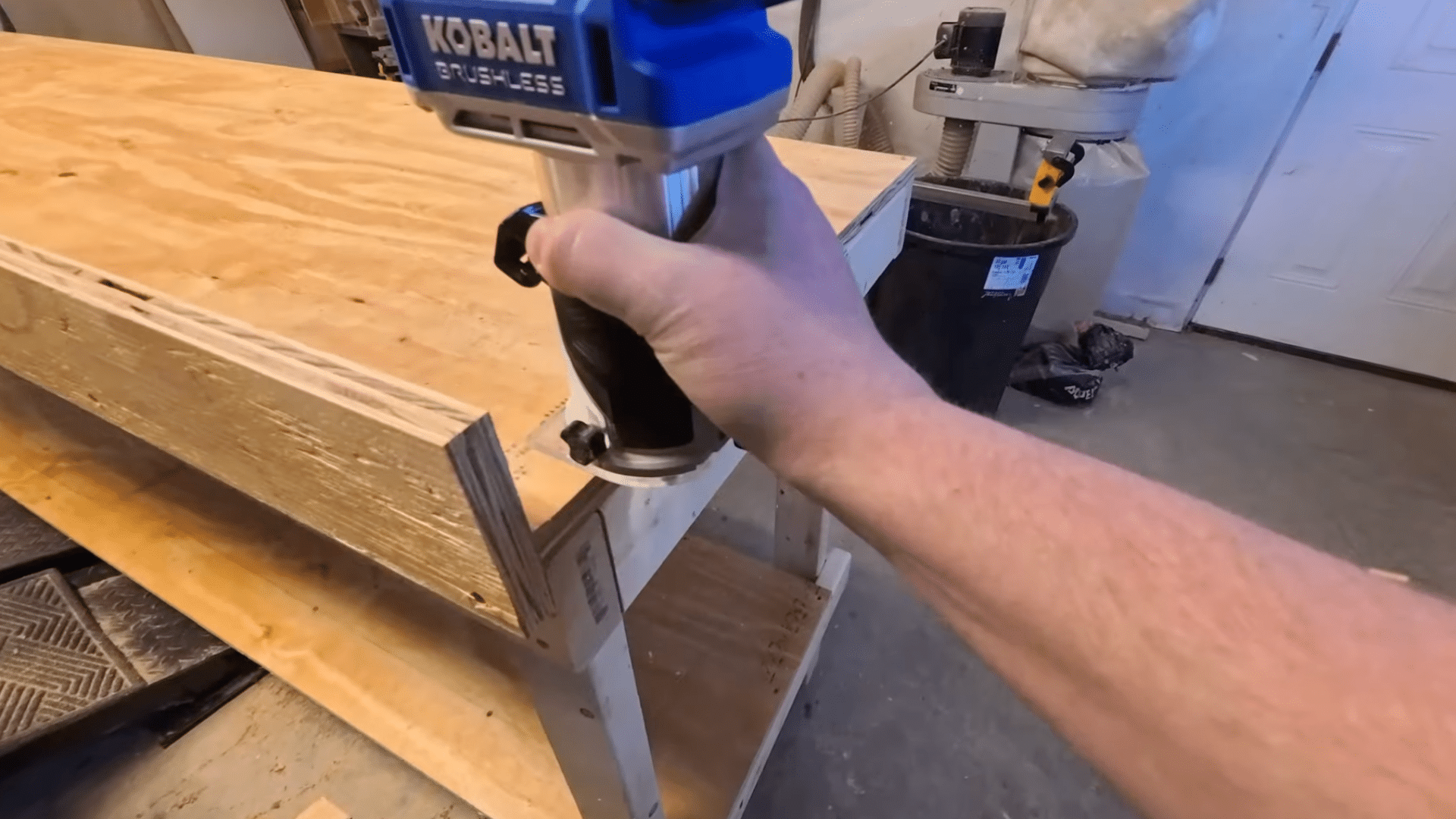

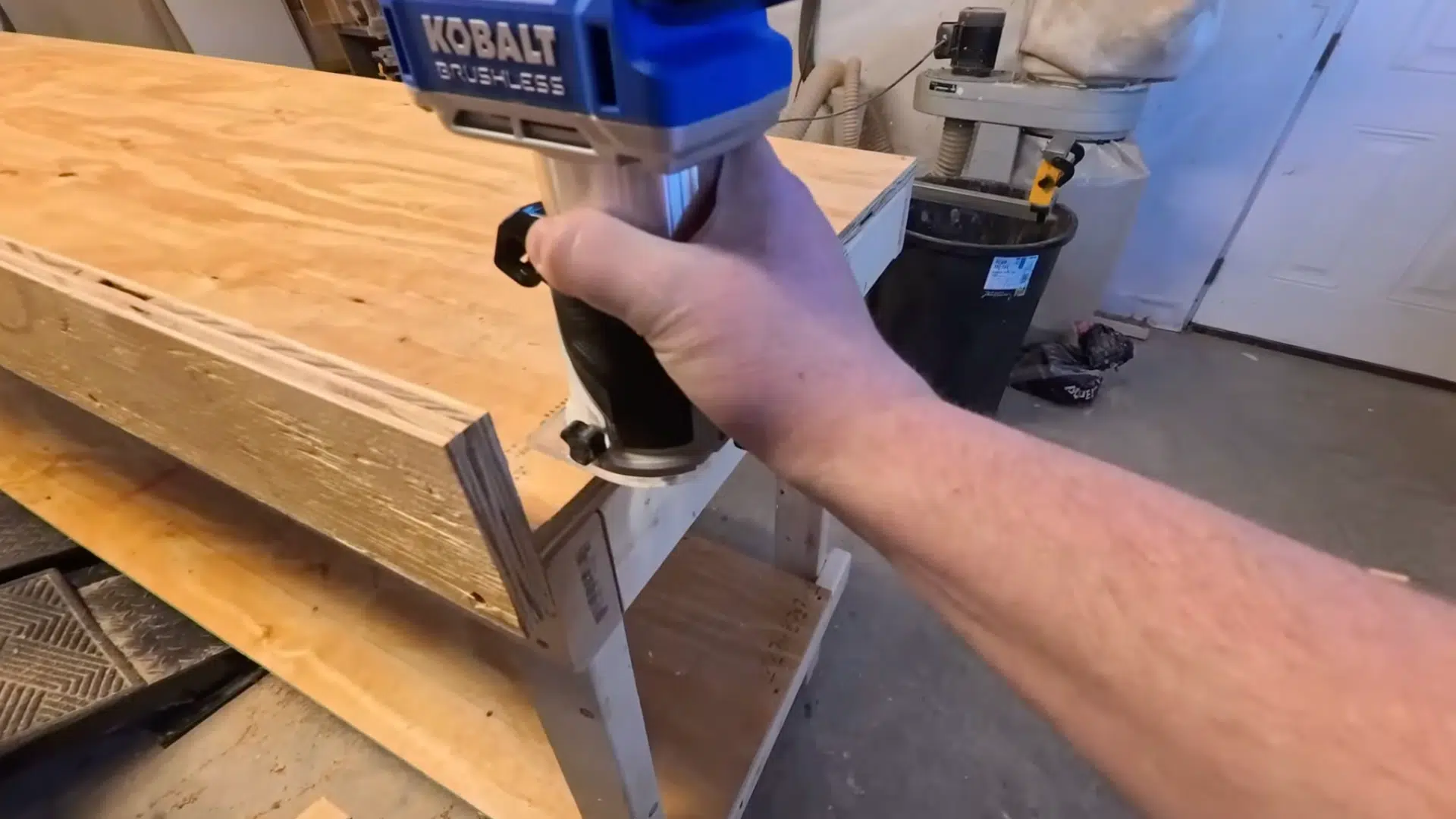

Check the bench for square again and adjust if something has shifted during assembly. For finishing touches, you can round the front edge with a router or smooth everything with sandpaper.
Seal the wood with paint or polyurethane to protect it from wear.
Consider adding a pegboard, hooks, or storage underneath to make the most of your new workspace.
Step 7: Transporting and Setting up the Workbench
If you need to move the finished bench, strap it down securely because it becomes heavy once assembled.
Take your time positioning it in your garage or workshop so you have enough space around the sides.
Once it’s set in place, you’ll have a sturdy top, a strong frame, and a roomy lower shelf ready for tool bags, storage bins, or larger equipment.
With the bench fully built and installed, you can start working on projects right away.
This tutorial is inspired by a clear and helpful build shared by BigLogan. Thanks to the creator for offering such an easy-to-follow walkthrough.
You can watch the original video on their YouTube channel or view it below.
Tips to Make Your DIY Workbench More Stable
A stable workbench makes every project safer and easier to handle. These simple upgrades keep your bench steady, even during heavy work.
• Add cross-bracing to the back or sides to stop wobbling.
• Use a level to check the frame and adjust the legs as needed.
• Attach rubber feet to prevent sliding and protect the floor.
• Choose thicker plywood for the top so it doesn’t flex under weight.
• Add extra screws at key joints to keep the frame tight.
• Anchor the bench to a wall or add weight to the lower shelf for more stability.
How to Maintain Your DIY Mobile Workbench Over Time?
Keeping your workbench in good shape over time starts with simple care. Begin by cleaning the surface after each project to remove dust, glue, or scraps that can wear down the wood.
Check the screws, bolts, and brackets often so you can tighten anything that starts to loosen.
Sealing or finishing the top is another smart step because it protects the wood from stains, moisture, and dents, and it helps the bench last longer.
You can add a fresh coat once it starts to look dull. Staying organized also plays a big part in maintaining your bench.
Keep your most-used tools within reach by using hooks, bins, or a pegboard so clutter doesn’t build up.
When your workspace stays clean, your bench stays safer, lasts longer, and feels easier to work on every time you start a new project.
Conclusion
Building your own workbench at home is one of those projects that gives you real value right away.
You measure your space, gather the tools and materials, and follow a few basic steps to build a bench that supports everything you want to work on.
Along the way, you learn what size works best for you, how to put the frame together, and how to keep the bench strong over time. The good thing is that you don’t need to get everything perfect on the first try.
Start with a simple design, use the skills you have now, and make small upgrades whenever you’re ready.
If you’ve been thinking about adding a workbench to your space, this is a great time to begin. Take the first step and start your build soon.
